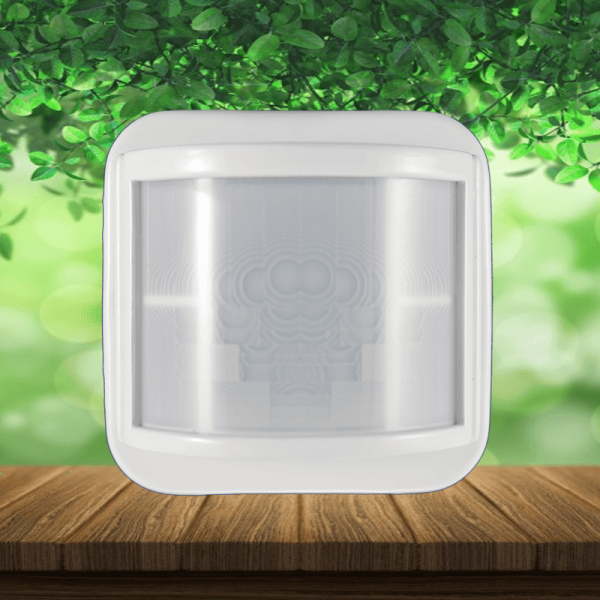

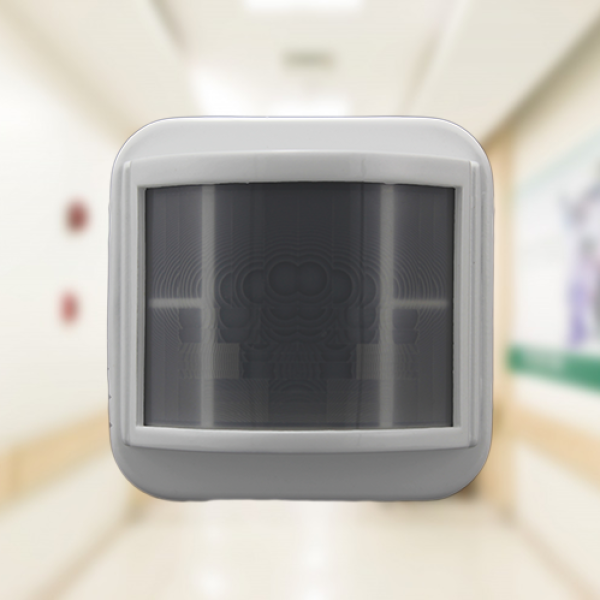

Wall Motion Sensor

Solid Build Quality

The Occupancy sensor operates by detecting the movement of infrared radiation emitted by humans. When an occupant enters the field of view of the Fresnel lens mounted in front of the IR sensor, it detects a change in received energy and activates the lights automatically. As long as movement is detected, the lights remain on. Once movement ceases, the sensor switches off the lights after a preset delay.

Additionally, the light sensor maintains illumination in the room at a preset level when movement is detected by the occupancy sensor. Constantly measuring the light level in the room, it adjusts for both artificial and natural light sources. By controlling the artificial fixtures, it ensures light levels are maintained at the pre-set level based on the combination of both light sources and human presence in the area.

Features
  • High Strength Material Crafted from durable and resilient materials, our product guarantees exceptional strength and longevity. Engineered to withstand daily wear and tear, it ensures reliable performance over time, providing users with peace of mind.
  • Elegant Aesthetics Design Combining functionality with style, our product features a sleek and sophisticated design. Its elegant aesthetics enhance the visual appeal of any space, seamlessly blending into various environments while delivering superior performance.
  • Drive . . . . . . . . Relay 900 Watts Equipped with a powerful relay capable of handling up to 900 watts of power, our product ensures efficient and reliable operation. Whether for residential or commercial use, it delivers consistent performance, meeting the demands of diverse applications.
  • Coverage Area . . . . 75 Ft With a generous coverage area of 75 square feet, our product effectively illuminates small to medium-sized spaces. Whether it’s a hallway, office, or retail store, it provides ample lighting coverage, optimizing visibility and comfort for occupants.
  • Install Height . . . . 6.8 Ft Designed for easy installation, our product is optimized for a mounting height of 6.8 feet. This height ensures optimal performance and coverage, making it suitable for a wide range of indoor environments while facilitating hassle-free installation.

Two Models

Premium

Standard

Wall Motion Sensor

It detects your single minor movement
Sensitivity
This setting controls the minimum amount of movement required for the sensor to detect whether a given area is occupied (human movement is used for detection) and turn ON the lights. Sensors are shipped with this setting set to the most sensitive position. The customer can manually change this setting on the sensor using a remote control unit.
Setting Storage
When a remote control is used to change any setting, the setting is automatically saved into the sensors permanent memory. This helps the sensor to retain the setting even after a power loss The setting can be overridden by entering the override mode on the remote control there by reverting back to hardware based settings..
Lux
The Lux Level setting of the sensor controls the switching ON and OFF or dimming level of artificial lighting. The customer can manually change this setting on the sensor using a remote control unit.
Visual Cue
Sensors provide visual cue during configuration of settings. The RGB LED light up in different colors depending on the current value of the setting being changed.
Time Delay
This is the duration that the sensor maintains the lights (or any other load connected to it) in the ON condition after the last occupancy is detected. Sensors are shipped with this parameter set at 5 min. The customer can manually change this setting using a remote control from 30sec to 30min.
Presentation Mode
This feature is useful during presentations using a projector to temporarily override the ambient light sensor based brightness control. After the presentation is over and once the room is vacated as indicated by the time delay sensor, the sensor reverts back to normal mode and start controlling the light based on the ambient light sensor. This feature is only applicable for dimmable sensors and when used in conjunction with a dimmable ballast.
Remote Control
Sensors can be remotely controlled by an Infrared (IR) remote control. This enables better control of the sensor�s parameters during installation. Sensor provides a visual cue to indicate the setting being changed and also value of the settings.
On-Demand Mode
This mode is used to provide on-demand lighting. User can select three different mode of the sensor. ‘Always OFF’ mode indicated by red color LED indication; ‘Always ON’ mode indicated by green color LED indication; ‘Auto’ mode indicated by yellow color LED indication
